مادربرد ورک استیشن x99-e WS از معدود مادربردهای تولید شده با پشتیبانی از 7 اسلات کارت گرافیک بصورت فول بند است که میتواند برای محسابات عددی بسیار سنگین همانند هوش مصنوعی استفاده شود. این مادربرد در فروشگاه ebay  تا 700 دلار نیز خرید و فروش میشود و بسیار کم یاب می باشد. مشخصات آن بسیار بالا بلند و کاربران حرفه ای که نیاز به استوریج فوق سریع و حجیم یا 7 گرافیک فول بند می باشند میتوانند از آن استفاده نمایند.

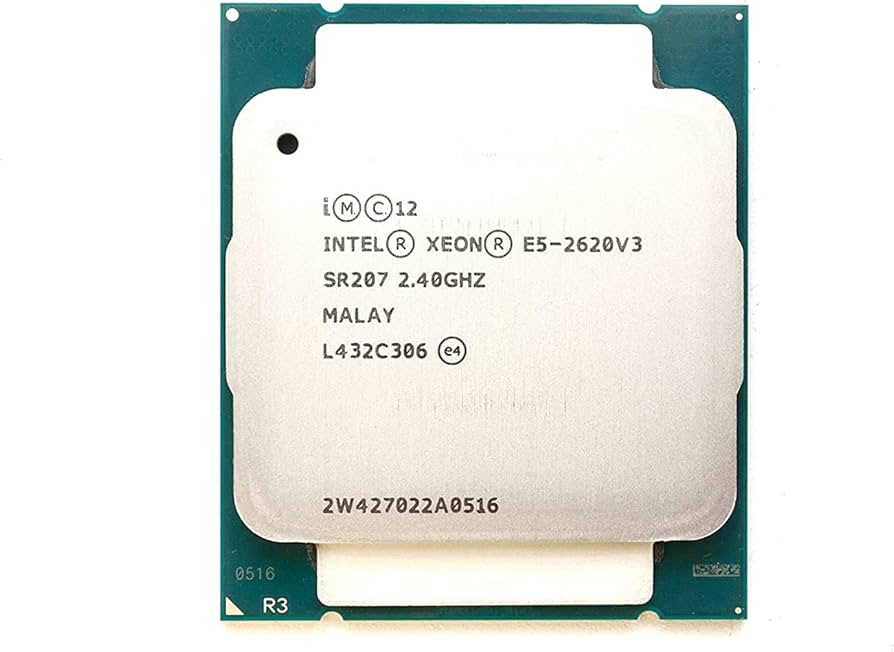

باندل: خنک کننده واترکول به همراه CPU XEON 2620v3

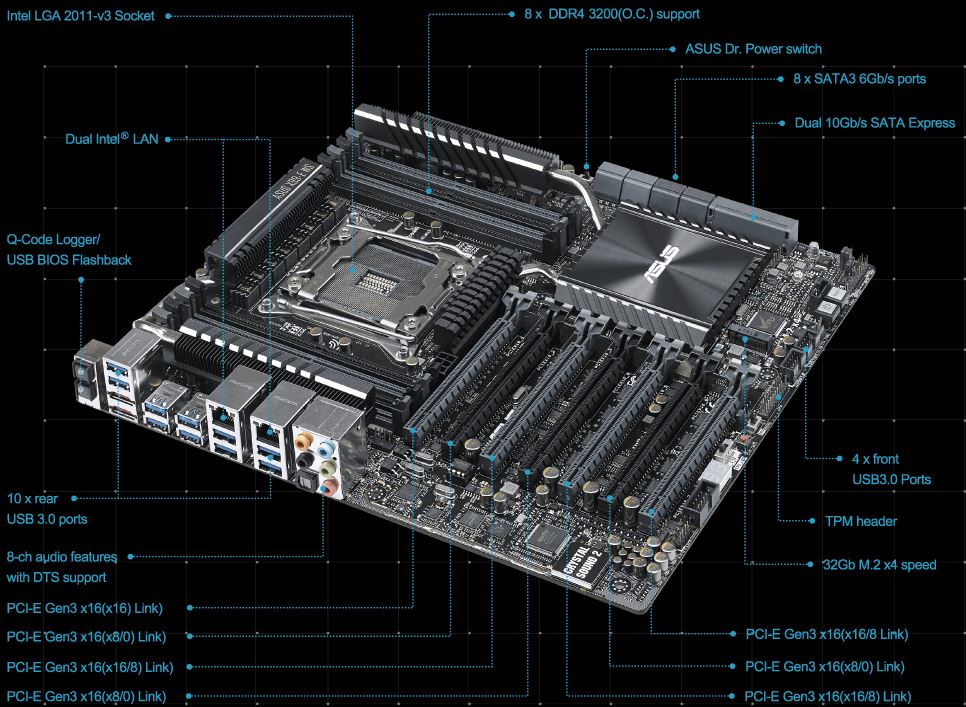

ASUS X99-E WS Specifications
CPU	Build in Intel® Socket 2011-v3 Processors Intel® Core™ i7 Processors for LGA 2011 Socket Supports Intel® 22 nm CPU Supports Intel® Turbo Boost Technology 2.0
Chipset	Intel® X99
Memory	8 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory Quad Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP)

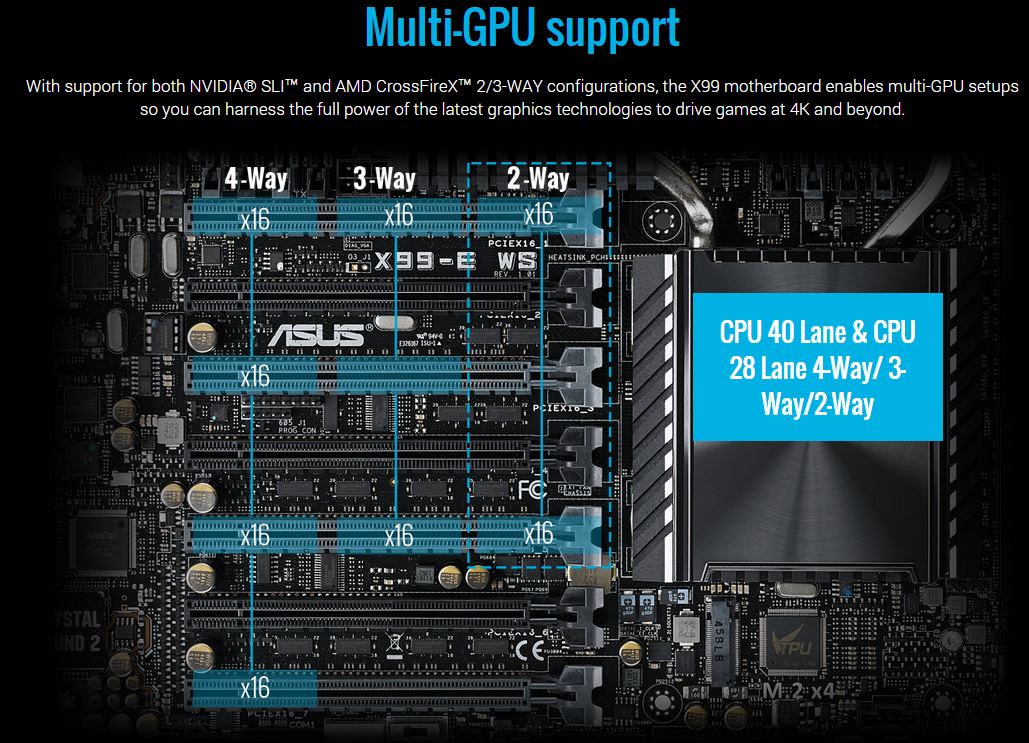

Multi-GPU Support	Supports NVIDIA® 4-Way SLI™ Technology Supports AMD 4-Way CrossFireX Technology
Expansion Slots	7x PCIe 3.0/2.0 x16 (single x16 or dual x16/x16 or triple x16/x16/x16 or quad x16/x16/x16/x16 or seven x16/x8/x8/x8/x16/x8/x8)
Storage	Intel® X99 chipset : 1 x SATA Express port, gray, compatible with 2 x SATA 6.0 Gb/s ports 1 x M.2 x4 Socket 3, gray, , with M Key, type 2260/2280 storage devices support (PCIE mode) 8 x SATA 6Gb/s port(s), gray, Intel® Rapid Storage Technology supports ASMedia® SATA Express controller : 1 x SATA Express port, gray, compatible with 2 x SATA 6.0 Gb/s ports ASMedia® SATA Express controller : 1 x eSATA 6Gb/s port(s), gray, compatible with 2 x SATA 6.0 Gb/s ports
LAN	Intel® I210-AT, 1 x Gigabit LAN Controller(s) Intel® I218LM, 1 x Gigabit LAN, Dual interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY)
Audio	Realtek® ALC1150 8-Channel High Definition Audio CODEC featuring Crystal Sound 2 Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, Front Panel MIC Jack-retasking
USB Ports	Intel® X99 chipset : 4 x USB 3.0/2.0 port(s) (4 at back panel, , 4 at mid-board) Intel® X99 chipset : 4 x USB 2.0/1.1 port(s) (4 at mid-board) ASMedia® USB 3.0 controller : 2 x USB 3.0/2.0 port(s) (2 at back panel, blue) ASMedia® USB 3.0 controller : 8 x USB 3.0/2.0 port(s) (4 at back panel, , 4 at mid-board)
Workstation Features	7 x PCIe x 16 slot(s) ASUS Dr. Power 12K hours Capacitors ProCool Power Connector Q-Code Logger
OS Support	Windows® 8.1 86×64 Windows® 8 86×64 Windows® 7 86×64
Back I/O Ports	2 x eSATA 2 x LAN (RJ45) port(s) 10 x USB 3.0 (blue) 1 x Optical S/PDIF out 8 x Audio jack(s) 1 x USB BIOS Flashback Button(s) 1 x Q-Code Logger button
Internal I/O Ports	2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 2 x SATA Express connector: gray, compatible with 2 x SATA 6.0 Gb/s ports 1 x M.2 Socket 3 for M Key, type 2260/2280 devices 1 x TPM connector(s) 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 4 x Chassis Fan connector(s) (4 x -pin) 1 x S/PDIF out header(s) 1 x Thunderbolt header(s) 2 x 8-pin EATX 12 V Power connector 1 x 6-pin EATX 12 V_1 Power connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x EZ XMP switch 1 x Front panel connector(s) 1 x System panel(s) (Q-Connector) 1 x 5-pin EXT_FAN(Extension Fan) connector 1 x DRCT header(s) 1 x MemOK! button(s) 1 x Thermal sensor connector(s) 1 x TPU switch(es) 1 x EPU switch(es) 1 x CPU/DRAM overvoltage jumper(s) 1 x Power-on button(s) 1 x Reset button(s) 1 x Clear CMOS button(s) 1 x Dr.Power switch(es)
Form Factor	CEB Form Factor 12 inch x 10.5 inch ( 30.5 cm x 26.7 cm )
